Q235GHN steel plate commonly used in several sizes?
The commonly used sizes of Q235GHN steel plates are grades A, B, C and D (GB/T 700-2006).
Q represents the yield limit of this material, and the latter 235 refers to the yield value of this material, which is around 235MPa. And the yield value decreases as the material thickness increases. Due to the moderate carbon content, good comprehensive performance, and matching strength, plasticity and welding performance, it is the most widely used.
The complete representation method is: Q235--Quality grade symbol · Deoxidation method symbol The quality grade is divided into A, B, C, D, E, followed by A grade with poor quality, and D grade with the highest quality. The symbols of deoxidation methods are F, b, Z, TZ, which represent boiling steel, semi-killed steel, killed steel and extra-killed steel respectively, but in the naming method, the symbols of Z and TZ can be omitted.
Application of Q235GHN steel plate:
1. Widely used in construction and engineering structures. It is used to manufacture steel bars or build workshops, high-voltage transmission towers, bridges, vehicles, boilers, containers, ships, etc. It is also widely used as mechanical parts with low performance requirements. C, D grade steel can also be used as some professional steel.
2. It can be used for various mold handles and other unimportant mold parts.
3. The stamping material adopts Q235GHN steel plate. It can be used directly without tempering after quenching. The hardness is 36~40HRC, which solves the phenomenon that the punch is broken during use.

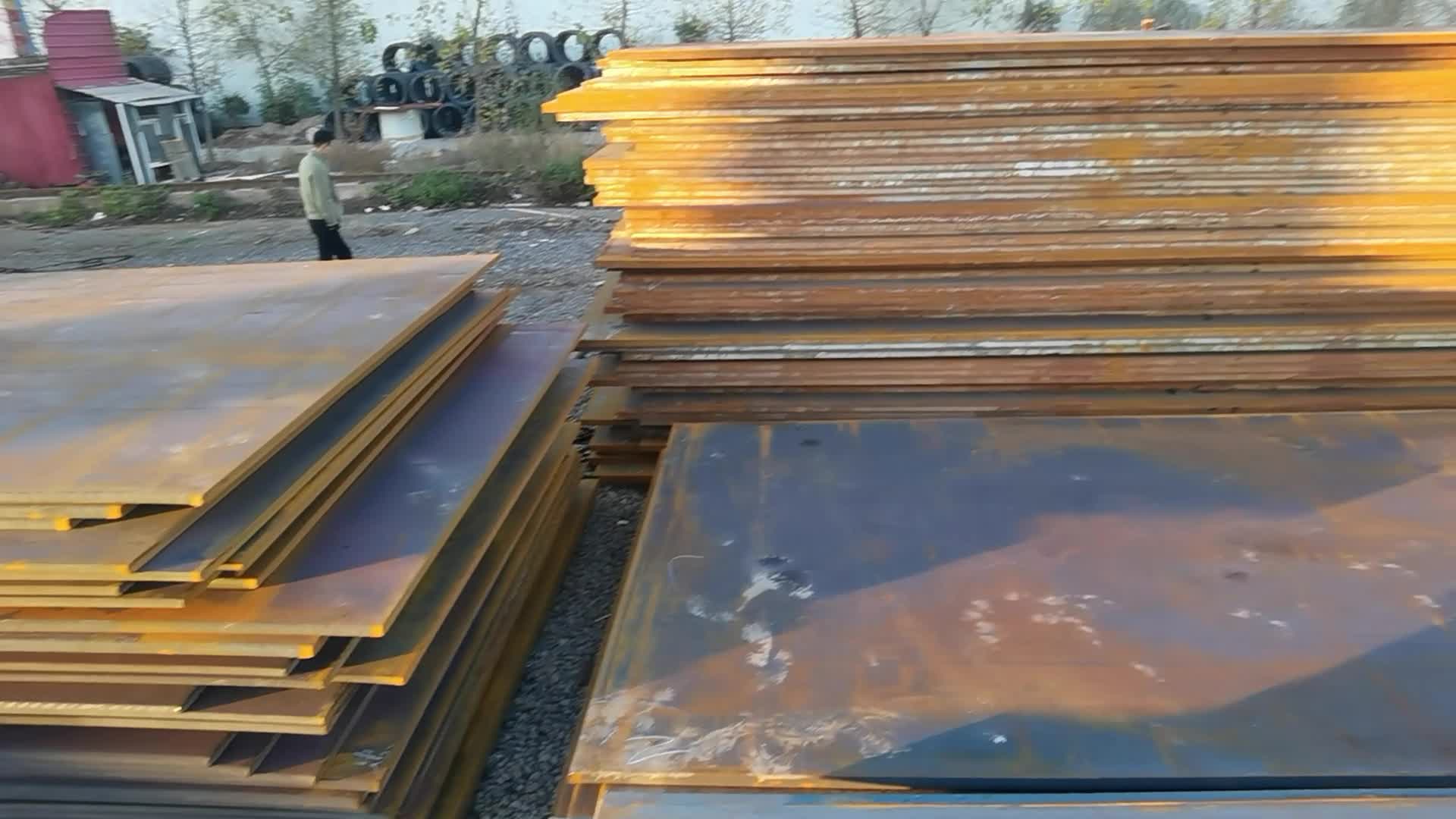

Carbon mild hot rolled steel sheet Q235 steel plate China manufacturer
Q235 steel plate contains four different grades as Q235A,Q235B,Q235C and Q235D.The big difference among these four carbon steel grades is the impacting temperature.
Q235 steel plate data sheet:
Q235 steel plate specification | Thickness | 0.6mm-600mm |
Width | ≤4200mm | |
Length | ≤18000mm | |
Q235 steel plate density | 7.85g/m3 | |
Deep processing | Cutting, welding, bending, drilling, etc. | |
Third party inspection | SGS, BV, Intertek, etc. | |
Delivery state | HR, AR |
Q235 steel plate chemical composition:
Grade | C | Mn | Si | S | P |
Q235A | 0.14-0.22 | 0.30-0.65 | ≤0.30 | ≤0.05 | ≤0.045 |
Q235B | 0.12-0.20 | 0.30-0.70 | ≤0.30 | ≤0.045 | ≤0.045 |
Q235C | ≤0.18 | 0.35-0.80 | ≤0.30 | ≤0.040 | ≤0.040 |
Q235D | ≤0.17 | 0.35-0.80 | ≤0.30 | ≤0.035 | ≤0.035 |
Q235 steel plate mechanical properties:
Grade | Yield Strength (Mpa) | Tensile Strength | Min Impact Energy | ||||||
≤ 16 | > 16-40 | >40-60 | >60-100 | >100-150 | >150 | Mpa | ℃ | J | |
Q235A | 235 | 225 | 215 | 205 | 195 | 185 | 375-460 | - | - |
Q235B | 235 | 225 | 215 | 205 | 195 | 185 | 375-460 | 20 | 27J |
Q235C | 235 | 225 | 215 | 205 | 195 | 185 | 375-460 | 0 | 27J |
Q235D | 235 | 225 | 215 | 205 | 195 | 185 | 375-460 | -20 | 27J |
The min impact energy is longitudinal energy |
Elongation | |||||
≤ 16 | > 16-40 | >40-60 | >60-100 | >100-150 | >150 |
26 | 25 | 24 | 23 | 22 | 21 |
26 | 25 | 24 | 23 | 22 | 21 |
26 | 25 | 24 | 23 | 22 | 21 |
26 | 25 | 24 | 23 | 22 | 21 |
Q235 steel plate features:
Q235 steel plate has good plasticity, toughness and weldability, as well as a certain strength, good cold bending performance.
Q235 steel plate application:
Q235 steel plate is used in different kinds of architecture and structural engineering, such as house, bridge, power transmission tower, crane,vessel, industrial boiler, reactiontower, pan straddle, warehouse and so on.
Q235 steel plate equivalent grades:
GB | ASTM | AFNOR | JIS | DIN | ISO | EN |
Q235B | A36, A283C | E24-2 | SS400, SM400A | ST37-2 | FE360B | S235JR |
Technical Requirements & Additional Services of Q235 steel plate:
♦ Low temperature impacting test
♦ Cutting and welding as per end user’s demands
♦ More striction on some chemical elements contains
♦ Issued Orginal Mill test certificate under EN 10204 FORMAT 3.1/3.2
♦ Ultrasonic test under GB/T2970,JB4730,EN 10160,ASTM A435,A577,A578
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your MOQ?
A: Usually our MOQ is 5t. But if your quantity is small, the price may be a little higher. When there is a big quantity, the price will be quite lower.
Q:How to buy your ideal products?
A: You can provide us your drawing, and we will produce as your drawing. Or we can design as your requirements if you do not have a clear plan.
Q:How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.
Q:How to install after the goods destination?
A: We will provide installation instruction and video for you. Technicians will be sent to help you if it is necessary. However, the visa fee, air tickets, accommodation, wages will be provided by buyers.
Q:How to get an accurate quotation?
A:Product detail size & Length,product quantities,product material grade.
Q:What other items from this supplier?
A:Angle line structural steel, H beam, I beam, Channel. Square, rectangular, round hollow section pipe. Steel plate, checker plate, corrugated sheet, steel coil. Flat, square, round bar. Screw, Stud bolt, nut, washer, flange and other related pipe kits.
